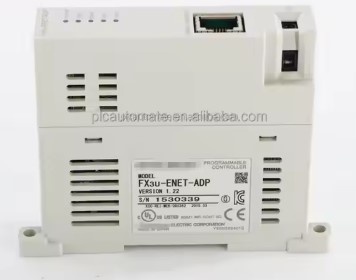

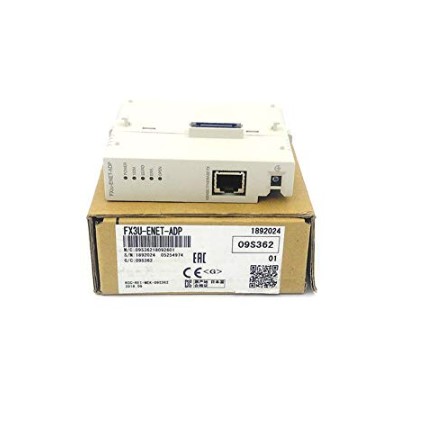

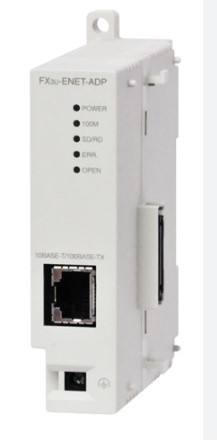

FX3U-ENET-ADP Mitsubishi Ethernet Interface
Original price was: ৳ 27,000.৳ 26,500Current price is: ৳ 26,500.
Mitsubishi Ethernet-interface block FX3U-ENET-ADP:
Manufacturer: Mitsubishi Electric
Product No.: FX3U-ENET-ADP
Product type: Ethernet Interface Block
Data transmission speed: 100Mbps or 10Mbps,
Communication type: Full/half-duplex
Transmission type: Baseband
Top segment length: 100m
Top number of nodes,PLC
Connectors: RJ45
MELSOFT connection + MC protocol + data monitoring ? 4 connection
Suggest PLC: FX3S, FX3G ,V2.00 or later, FX3U
connection to the FX3S is required FX3S-CNV-ADP.
Connection to the FX3G is required FX3G-CNV-ADP.
FX3U
Power supply: 30mA / DC5V
Ambient temperature: 0 ~ 55 °C, -25 ~ 75 °C ·
Relative humidity: 5 ~ 95% RH
Frequency: 57 ~ 150Hz:
Acceleration: 4.9m
Direct mounting at the time Frequency: 10 ~ 57Hz:
Half amplitude: 0.075mm X, Y, Z every direction 10 times
Frequency: 57 ~ 150Hz:
Acceleration: 9.8m is best
You must be logged in to post a review.
