Category: MITSUBISHI

Showing all 3 results

• Sale!

  FX3U-4DA-ADP ANALOG CARD MODULE

  ৳ 20,000 Original price was: ৳ 20,000.৳ 17,000Current price is: ৳ 17,000.

  ntroduction

  The FX3U-3A-ADP special adapter for analog input and output (hereinafter called 3A-ADP) is a special adapter that adds to add two analog input points and one analog output point.

  Applicable PLC

  Model name

  Applicability

  FX3U Series PLC

  Ver. 2.61 or later

  FX3UC Series PLC

  Ver. 2.61 or later

  FX3G Series PLC

  Ver. 1.20 or later

  FX3GC Series PLC

  Ver. 1.40 or later (from first production)

  The version number can be checked by monitoring D8001/D8101 as the last three digits indicate it.

  Power Supply Specifications

  Item

  Specification

  Conversion circuit

  driving power

  24V DC +20% / -15%, 90mA

  Connect a 24V DC power supply to the terminal block.

  Interface driving

  power

  5V DC, 20mA

  5V DC power is supplied from the internal power supply of main unit.

  Performance Specifications

  Performance Specifications of Analog Input

  Item

  Specification

  Voltage input

  Current input

  Analog input range

  0 to 10V DC (Input resistance: 198.7 k ohm)

  4 to 20mA DC

  (Input resistance: 250ohm)

  Maximum

  absolute input

  -0.5V, +15V

  -2mA, +30mA

  Resolution

  2.5mV (10V/4000)

  5uA (16mA/3200)

  Total accuracy

  +-0.5% (+-50mV) for full scale

  of 10V (when ambient

  temperature is 25°C+-5°C)

  +-1.0% (±100mV) for full scale

  of 10V (when ambient

  temperature is 0°C to 55°C)

  +-0.5% (+-80uA) for full scale

  of 16mA (when ambient

  temperature is 25°C+-5°C)

  +-1.0% (+-160uA) for full scale

  of 16mA (when ambient

  temperature is 0°C to 55°C)

  Performance Specifications of Analog Output

  Item

  Specification

  Voltage output

  Current output

  Analog output range

  0 to 10 V DC

  (External load: 5k ohm to 1M ohm)

  4 to 20mA DC

  (External load: 500 ohm or less)

  Resolution

  2.5mV (10V/4000)

  4uA (16mA/4000)

  Total

  accuracy

  +-0.5% (+-50mV) for full scale

  of 10 V (when ambient

  temperature is 25°C+-5 °C)

  +-1.0% (+-100mV) for full

  scale of 10 V (when ambient temperature is 0°C to 55°C)

  If the external load resistance

  (Rs) is less than 5k ohm, the accuracy will be increses as shown in the following formula: (Addition will be 100mV per%.)

  +-0.5% (+-80uA) for full scale

  of 16mA (when ambient

  temperature is 25°C±5°C)

  +-1.0% (+-160uA) for full

  scale of 16mA (when

  ambient temperature is 0°C

  to 55 °C)

  Total accuracy

  +-0.5% (+-50mV) for full scale

  of 10V (when ambient

  temperature is 25°C+-5°C)

  +-1.0% (±100mV) for full scale

  of 10V (when ambient

  temperature is 0°C to 55°C)

  +-0.5% (+-80uA) for full scale

  of 16mA (when ambient

  temperature is 25°C+-5°C)

  +-1.0% (+-160uA) for full scale

  of 16mA (when ambient

  temperature is 0°C to 55

  Add to cart CompareAdd to wishlist
• Sale!

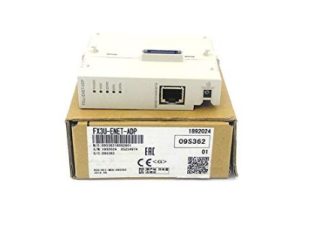

  FX3U-ENET-ADP Mitsubishi Ethernet Interface

  ৳ 27,000 Original price was: ৳ 27,000.৳ 26,500Current price is: ৳ 26,500.

  Mitsubishi Ethernet-interface block FX3U-ENET-ADP:
  Manufacturer: Mitsubishi Electric
  Product No.: FX3U-ENET-ADP
  Product type: Ethernet Interface Block
  Data transmission speed: 100Mbps or 10Mbps,
  Communication type: Full/half-duplex
  Transmission type: Baseband
  Top segment length: 100m
  Top number of nodes,PLC
  Connectors: RJ45
  MELSOFT connection + MC protocol + data monitoring ? 4 connection
  Suggest PLC: FX3S, FX3G ,V2.00 or later, FX3U
  connection to the FX3S is required FX3S-CNV-ADP.
  Connection to the FX3G is required FX3G-CNV-ADP.
  FX3U
  Power supply: 30mA / DC5V
  Ambient temperature: 0 ~ 55 °C, -25 ~ 75 °C ·
  Relative humidity: 5 ~ 95% RH
  Frequency: 57 ~ 150Hz:
  Acceleration: 4.9m
  Direct mounting at the time Frequency: 10 ~ 57Hz:
  Half amplitude: 0.075mm X, Y, Z every direction 10 times
  Frequency: 57 ~ 150Hz:
  Acceleration: 9.8m is best

  Add to cart CompareAdd to wishlist
• Sale!

  FX5U-32MR/ES

  ৳ 75,500 Original price was: ৳ 75,500.৳ 65,000Current price is: ৳ 65,000.

  ype FX5U
  Power Supply (V) 100-240
  Current Type AC
  Program Memory 64K STEPS
  Program Memory Unit FLASH
  Integrated Digital Inputs 16
  Integrated Digital Outputs 16
  Integrated Analogue Inputs 2
  Output Type RELAY
  Local I/O Points 256
  Local + Remote I/O Points 512
  Expandable YES
  Cycle Time LD (ns) 34
  Cycle Time MOV (ns) 34
  Ethernet Port 1
  RS-485 1
  Power Consumption (W) 30
  Buffer Battery OPTION
  Protection Class IP10
  Min. Ambient Temperature (°C) 0
  Max. Ambient Temperature (°C) 55
  Series MELSEC IQ-F SERIES
  Product Dimensions & Weight
  Width (mm) 150
  Height (mm) 90
  Depth (mm) 83
  Weight (kg) 0,65

  Add to cart CompareAdd to wishlist
